spring是java程序员的春天,很多人写完helloworld后就转入了spring的怀抱。现在来了解一下bean是怎么创建的吧。

这里假设你已经对java比较了解,类反射代理之类的也有所涉猎。否则建议先了解一下类的反射。

如何定义Bean

假设你在写一个类Dog,Dog有年龄age,名字name,它还可以say。以下是实现代码:

public class Dog {
    public Integer age;
    public String name;

    public void say(){
        System.out.println("my name is "+name+" . age is "+age);
    }

    public static void main(String[] args) {
        new Dog().say();
    }
}

我们来看看怎么描述我们想要创建的Dog。

类名

类名肯定得有,到时候通过Class#forName()方法可以加载到这个类。

实例别名

如果你不想通过类名来描述一个实例,又或是这个类有多个实例,这时候就需要一个实例别名来描述了。

构造函数

如果你希望通过向特定的构造函数传入入参来创建实例,那么你得描述到底使用哪个构造函数,简单的可以通过每个参数的类型,来判断。然而,如果你的入参是通过别的bean定义得来的,那你可得考虑两个实例的生成关系了。

属性设置

就像这个Dog类,不用向构造函数传参即可new出来,那如果想在实例生成后设置上属性该怎么做呢?是不是得标记一下你想给哪个属性设置什么值。

初始化方法

你的实例生成了,属性也设置上了,你想让他试着叫一下,是不是得指定say方法在实例化后执行?

销毁方法

假如你的Dog连接了一些资源,在下线时需要销毁,是不是得指定方法在系统执行完后执行?

其他方面,读者可以再考虑一下。

BeanDefinition

在第一小节中,大家大致了解了对于一个对象该怎么描述。为什么需要考虑对象的描述呢?因为使用spring就会把对象的生成交给spring,spring需要知道对象该怎么生成。

在spring中,BeanDefinition就是描述对象的类。在getBean时,spring通过对BeanDefinition列表的扫描得知你需要哪一个bean,进而生成bean返回给你。

通过代码生成BeanDefinition

最普通的情况就是通过xml生成了,spring通过对xml的读取解析得到用户写的bean配置,想一想第一小节中那些描述点都在spring的xml配置的哪些地方。

实际上也可以通过代码生成:

public class Dog {
    public Integer age;
    public String name;

    public void say(){
        System.out.println("my name is "+name+" . age is "+age);
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public void setName(String name) {
        this.name = name;
    }

    public static void main(String[] args) {
        new Dog().say();

        // 准备生成dog的定义
        BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(Dog.class);
        // 设置它的属性
        builder.addPropertyValue("name","john");
        builder.addPropertyValue("age",1);

        // 生成beanFactory
        DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();

        // 添加dog定义
        beanFactory.registerBeanDefinition("dog",builder.getBeanDefinition());

        // 获取dog
        Dog dog = (Dog) beanFactory.getBean("dog");
        dog.say();
    }
}

结果如下:

my name is null . age is null
my name is john . age is 1

通过xml生成BeanDefinition

xml生成BeanDefinition无非是原先用代码描述的BeanDefinition换成用xml描述,至于怎么读取xml,spring有自己的方法。而xml的解析技术一般分为两种 DOM SAX

DOM方式

根据XML的层级结构在内存中分配一个树形结构,把XML的标签,属性和文本等元素都封装成树的节点对象

  • 优点: 便于实现增 删 改 查
  • 缺点: XML文件过大可能造成内存溢出

SAX方式

采用事件驱动模型边读边解析:从上到下一行行解析,解析到某一元素, 调用相应解析方法

  • 优点: 不会造成内存溢出,
  • 缺点: 查询不方便,但不能实现 增 删 改

具体如何解析这里就不深究了,重点是你可以从xml节点上读取相关信息生成BeanDefinition

实际使用

实际上,DefaultListableBeanFactory不具备从xml配置中获取BeanDefinition,它只能通过代码的方式注册。我们应用一般采用ApplicationContext的实现类FileSystemXmlApplicationContext,ClassPathXmlApplicationContextWebXmlApplicationContext来从xml中获取BeanDefinition,并注册到自身的属性BeanFactory中。ClassPathXmlApplicationContext的类关系图如下:

upload successful

在生成ClassPathXmlApplicationContext对象时,构造函数入参会传入具体xml配置文件的位置,可以是单个,也可以是多个,也可以包含匹配符。

接着会调用AbstractApplicationContext的refresh方法。refresh方法中会调用自身方法obtainFreshBeanFactory来获取生成的Bean。

obtainFreshBeanFactory方法会调用AbstractRefreshableApplicationContext的refreshBeanFactory方法。这个方法的作用是销毁已有beanFactory中的bean,并且关闭beanFactory。接着会去生成一个DefaultListableBeanFactory对象,最后使用loadBeanDefinitions方法从xml配置中加载BeanDefinition。

实际上AbstractXmlApplicationContext实现了loadBeanDefinitions方法,在这个方法里,使用了XmlBeanDefinitionReader对象来读取xml配置信息并转换成BeanDefinition。XmlBeanDefinitionReader采用SAX方式读取xml。

生成Bean对象

上边两个小节描述了Bean的定义,接下来就是重头了,如何生成Bean对象,spring又是如何让生成Bean对象变得可扩展。

使用反射技术生成对象

public class Dog {
    protected Integer age;
    public String name;

    public void say(){
        System.out.println("my name is "+name+" . age is "+age);
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public void setName(String name) {
        this.name = name;
    }

    public static void main(String[] args) {
        try {
            // 获取Dog类
            Class dogClass = Class.forName("Dog");
            // 通过类生成对象
            Dog dog1 = (Dog) dogClass.newInstance();
            // 获取特定的属性
            Field field = dogClass.getField("name");
            // 填充属性
            field.set(dog1,"landa");
            dog1.say();
        } catch (InstantiationException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (NoSuchFieldException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }

    }
}

结果:

my name is landa . age is null

以上代码演示了如何不通过new的方式生成对象,并且给对象设置上属性值。可以说,spring做的一切都是基于java的反射。

BeanFactory类图

upload successful

AbstractBeanFactory#doGetBean方法

DefaultListableBeanFactory的getBean方法最终会调用AbstractBeanFactory的doGetBean方法。

doGetBean方法执行流程:

doGetBean方法:

protected <T> T doGetBean( final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
        throws BeansException {

    final String beanName = transformedBeanName(name);
    Object bean;

    // Eagerly check singleton cache for manually registered singletons.
    Object sharedInstance = getSingleton(beanName);
    if (sharedInstance != null && args == null) {
        if (logger.isDebugEnabled()) {
            if (isSingletonCurrentlyInCreation(beanName)) {
                logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
                        "' that is not fully initialized yet - a consequence of a circular reference");
            }
            else {
                logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
            }
        }
        bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
    }

    else {
        // Fail if we're already creating this bean instance:
        // We're assumably within a circular reference.
        if (isPrototypeCurrentlyInCreation(beanName)) {
            throw new BeanCurrentlyInCreationException(beanName);
        }

        // Check if bean definition exists in this factory.
        BeanFactory parentBeanFactory = getParentBeanFactory();
        if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
            // Not found -> check parent.
            String nameToLookup = originalBeanName(name);
            if (args != null) {
                // Delegation to parent with explicit args.
                return (T) parentBeanFactory.getBean(nameToLookup, args);
            }
            else {
                // No args -> delegate to standard getBean method.
                return parentBeanFactory.getBean(nameToLookup, requiredType);
            }
        }

        if (!typeCheckOnly) {
            markBeanAsCreated(beanName);
        }

        try {
            final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
            checkMergedBeanDefinition(mbd, beanName, args);

            // Guarantee initialization of beans that the current bean depends on.
            String[] dependsOn = mbd.getDependsOn();
            if (dependsOn != null) {
                for (String dependsOnBean : dependsOn) {
                    if (isDependent(beanName, dependsOnBean)) {
                        throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                "Circular depends-on relationship between '" + beanName + "' and '" + dependsOnBean + "'");
                    }
                    registerDependentBean(dependsOnBean, beanName);
                    getBean(dependsOnBean);
                }
            }

            // Create bean instance.
            if (mbd.isSingleton()) {
                sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
                    @Override
                    public Object getObject() throws BeansException {
                        try {
                            return createBean(beanName, mbd, args);
                        }
                        catch (BeansException ex) {
                            // Explicitly remove instance from singleton cache: It might have been put there
                            // eagerly by the creation process, to allow for circular reference resolution.
                            // Also remove any beans that received a temporary reference to the bean.
                            destroySingleton(beanName);
                            throw ex;
                        }
                    }
                });
                bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
            }

            else if (mbd.isPrototype()) {
                // It's a prototype -> create a new instance.
                Object prototypeInstance = null;
                try {
                    beforePrototypeCreation(beanName);
                    prototypeInstance = createBean(beanName, mbd, args);
                }
                finally {
                    afterPrototypeCreation(beanName);
                }
                bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
            }

            else {
                String scopeName = mbd.getScope();
                final Scope scope = this.scopes.get(scopeName);
                if (scope == null) {
                    throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
                }
                try {
                    Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
                        @Override
                        public Object getObject() throws BeansException {
                            beforePrototypeCreation(beanName);
                            try {
                                return createBean(beanName, mbd, args);
                            }
                            finally {
                                afterPrototypeCreation(beanName);
                            }
                        }
                    });
                    bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
                }
                catch (IllegalStateException ex) {
                    throw new BeanCreationException(beanName,
                            "Scope '" + scopeName + "' is not active for the current thread; consider " +
                            "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                            ex);
                }
            }
        }
        catch (BeansException ex) {
            cleanupAfterBeanCreationFailure(beanName);
            throw ex;
        }
    }

    // Check if required type matches the type of the actual bean instance.
    if (requiredType != null && bean != null && !requiredType.isAssignableFrom(bean.getClass())) {
        try {
            return getTypeConverter().convertIfNecessary(bean, requiredType);
        }
        catch (TypeMismatchException ex) {
            if (logger.isDebugEnabled()) {
                logger.debug("Failed to convert bean '" + name + "' to required type [" +
                        ClassUtils.getQualifiedName(requiredType) + "]", ex);
            }
            throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
        }
    }
    return (T) bean;
}

AbstractAutowireCapableBeanFactory#createBean方法

createBean方法执行流程:

@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
    if (logger.isDebugEnabled()) {
        logger.debug("Creating instance of bean '" + beanName + "'");
    }
    RootBeanDefinition mbdToUse = mbd;

    // Make sure bean class is actually resolved at this point, and
    // clone the bean definition in case of a dynamically resolved Class
    // which cannot be stored in the shared merged bean definition.
    Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
    if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
        mbdToUse = new RootBeanDefinition(mbd);
        mbdToUse.setBeanClass(resolvedClass);
    }

    // Prepare method overrides.
    try {
        mbdToUse.prepareMethodOverrides();
    }
    catch (BeanDefinitionValidationException ex) {
        throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
                beanName, "Validation of method overrides failed", ex);
    }

    try {
        // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
        Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
        if (bean != null) {
            return bean;
        }
    }
    catch (Throwable ex) {
        throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
                "BeanPostProcessor before instantiation of bean failed", ex);
    }

    Object beanInstance = doCreateBean(beanName, mbdToUse, args);
    if (logger.isDebugEnabled()) {
        logger.debug("Finished creating instance of bean '" + beanName + "'");
    }
    return beanInstance;
}

AbstractAutowireCapableBeanFactory#doCreateBean方法

doCreateBean方法执行流程:

循环依赖且带代理的情况

注意其流程,这里举一个例子,C和D类循环依赖,且C和D类会被代理。

  1. 先准备创建C,C实现类被称为元对象c
  2. 元对象c被放入被放入singletonFactories,且调用的是getEarlyBeanReference方法(这个方法比较凶残,会调用SmartInstantiationAwareBeanPostProcessor实现类的getEarlyBeanReference方法传入元返回新对象,AbstractAutoProxyCreator是该接口的实现类,他真正实现了生成代理)
  3. 执行populateBean方法给元对象c赋值
  4. 好戏来了,这时候需要获取创建的D,元对象d也走上述方法。
  5. 到populateBean方法赋值时,doGetBean方法会把处在singletonFactories的对象c通过调用getEarlyBeanReference方法生成代理对象c,并且推到earlySingletonObjects中。
  6. 也就是说元对象d拿到的是代理对象c,但此时代理对象c中的元对象c里并没有d,如果在d初始化方法中调用c对象中的d的方法,那铁定报错。
  7. 调用元对象d的初始化方法
  8. 此时元对象d并没有在earlySingletonObjects中
  9. 注册元对象d回调,
  10. 正式生成单例对象d->调用getEarlyBeanReference方法生成代理对象d,并放入最终的singletonObjects中
  11. 元对象c的populate方法可以执行了,初始化方法也可以执行了。
  12. 此时元对象c在earlySingletonObjects中
  13. 正式生成单例对象c->调用getEarlyBeanReference方法生成代理对象c,并放入最终的singletonObjects中
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args) {
    // Instantiate the bean.
    BeanWrapper instanceWrapper = null;
    if (mbd.isSingleton()) {
        instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
    }
    if (instanceWrapper == null) {
        instanceWrapper = createBeanInstance(beanName, mbd, args);
    }
    final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);
    Class<?> beanType = (instanceWrapper != null ? instanceWrapper.getWrappedClass() : null);

    // Allow post-processors to modify the merged bean definition.
    synchronized (mbd.postProcessingLock) {
        if (!mbd.postProcessed) {
            applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
            mbd.postProcessed = true;
        }
    }

    // Eagerly cache singletons to be able to resolve circular references
    // even when triggered by lifecycle interfaces like BeanFactoryAware.
    boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
            isSingletonCurrentlyInCreation(beanName));
    if (earlySingletonExposure) {
        if (logger.isDebugEnabled()) {
            logger.debug("Eagerly caching bean '" + beanName +
                    "' to allow for resolving potential circular references");
        }
        addSingletonFactory(beanName, new ObjectFactory<Object>() {
            @Override
            public Object getObject() throws BeansException {
                return getEarlyBeanReference(beanName, mbd, bean);
            }
        });
    }

    // Initialize the bean instance.
    Object exposedObject = bean;
    try {
        populateBean(beanName, mbd, instanceWrapper);
        if (exposedObject != null) {
            exposedObject = initializeBean(beanName, exposedObject, mbd);
        }
    }
    catch (Throwable ex) {
        if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
            throw (BeanCreationException) ex;
        }
        else {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
        }
    }

    if (earlySingletonExposure) {
        Object earlySingletonReference = getSingleton(beanName, false);
        if (earlySingletonReference != null) {
            if (exposedObject == bean) {
                exposedObject = earlySingletonReference;
            }
            else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                String[] dependentBeans = getDependentBeans(beanName);
                Set<String> actualDependentBeans = new LinkedHashSet<String>(dependentBeans.length);
                for (String dependentBean : dependentBeans) {
                    if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                        actualDependentBeans.add(dependentBean);
                    }
                }
                if (!actualDependentBeans.isEmpty()) {
                    throw new BeanCurrentlyInCreationException(beanName,
                            "Bean with name '" + beanName + "' has been injected into other beans [" +
                            StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                            "] in its raw version as part of a circular reference, but has eventually been " +
                            "wrapped. This means that said other beans do not use the final version of the " +
                            "bean. This is often the result of over-eager type matching - consider using " +
                            "'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
                }
            }
        }
    }

    // Register bean as disposable.
    try {
        registerDisposableBeanIfNecessary(beanName, bean, mbd);
    }
    catch (BeanDefinitionValidationException ex) {
        throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
    }

    return exposedObject;
}

AbstractAutowireCapableBeanFactory#createBeanInstance方法

createBeanInstance方法执行流程

protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, Object[] args) {
    // Make sure bean class is actually resolved at this point.
    Class<?> beanClass = resolveBeanClass(mbd, beanName);

    if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
        throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                "Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
    }

    if (mbd.getFactoryMethodName() != null)  {
        return instantiateUsingFactoryMethod(beanName, mbd, args);
    }

    // Shortcut when re-creating the same bean...
    boolean resolved = false;
    boolean autowireNecessary = false;
    if (args == null) {
        synchronized (mbd.constructorArgumentLock) {
            if (mbd.resolvedConstructorOrFactoryMethod != null) {
                resolved = true;
                autowireNecessary = mbd.constructorArgumentsResolved;
            }
        }
    }
    if (resolved) {
        if (autowireNecessary) {
            return autowireConstructor(beanName, mbd, null, null);
        }
        else {
            return instantiateBean(beanName, mbd);
        }
    }

    // Need to determine the constructor...
    Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
    if (ctors != null ||
            mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
            mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args))  {
        return autowireConstructor(beanName, mbd, ctors, args);
    }

    // No special handling: simply use no-arg constructor.
    return instantiateBean(beanName, mbd);
}

AbstractAutowireCapableBeanFactory#populateBean方法

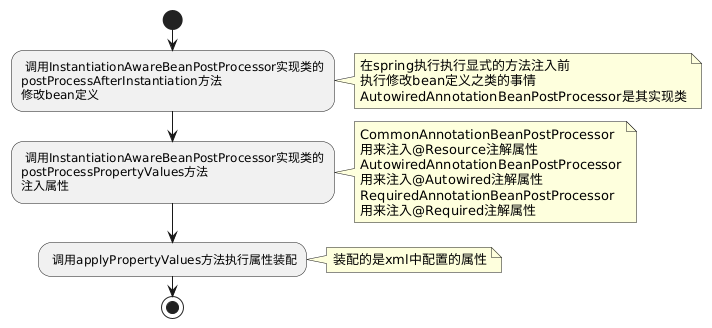

populateBean方法执行流程:

protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
    PropertyValues pvs = mbd.getPropertyValues();

    if (bw == null) {
        if (!pvs.isEmpty()) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
        }
        else {
            // Skip property population phase for null instance.
            return;
        }
    }

    // Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
    // state of the bean before properties are set. This can be used, for example,
    // to support styles of field injection.
    boolean continueWithPropertyPopulation = true;

    if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
        for (BeanPostProcessor bp : getBeanPostProcessors()) {
            if (bp instanceof InstantiationAwareBeanPostProcessor) {
                InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
                if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
                    continueWithPropertyPopulation = false;
                    break;
                }
            }
        }
    }

    if (!continueWithPropertyPopulation) {
        return;
    }

    if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
            mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
        MutablePropertyValues newPvs = new MutablePropertyValues(pvs);

        // Add property values based on autowire by name if applicable.
        if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
            autowireByName(beanName, mbd, bw, newPvs);
        }

        // Add property values based on autowire by type if applicable.
        if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
            autowireByType(beanName, mbd, bw, newPvs);
        }

        pvs = newPvs;
    }

    boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
    boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);

    if (hasInstAwareBpps || needsDepCheck) {
        PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
        if (hasInstAwareBpps) {
            for (BeanPostProcessor bp : getBeanPostProcessors()) {
                if (bp instanceof InstantiationAwareBeanPostProcessor) {
                    InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
                    pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
                    if (pvs == null) {
                        return;
                    }
                }
            }
        }
        if (needsDepCheck) {
            checkDependencies(beanName, mbd, filteredPds, pvs);
        }
    }

    applyPropertyValues(beanName, mbd, bw, pvs);
}

AbstractAutowireCapableBeanFactory#initializeBean方法

initializeBean方法执行流程:

protected Object initializeBean(final String beanName, final Object bean, RootBeanDefinition mbd) {
    if (System.getSecurityManager() != null) {
        AccessController.doPrivileged(new PrivilegedAction<Object>() {
            @Override
            public Object run() {
                invokeAwareMethods(beanName, bean);
                return null;
            }
        }, getAccessControlContext());
    }
    else {
        invokeAwareMethods(beanName, bean);
    }

    Object wrappedBean = bean;
    if (mbd == null || !mbd.isSynthetic()) {
        wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
    }

    try {
        invokeInitMethods(beanName, wrappedBean, mbd);
    }
    catch (Throwable ex) {
        throw new BeanCreationException(
                (mbd != null ? mbd.getResourceDescription() : null),
                beanName, "Invocation of init method failed", ex);
    }

    if (mbd == null || !mbd.isSynthetic()) {
        wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
    }
    return wrappedBean;
}

小结

标签: java, spring

添加新评论
